Multifunction Landing Gears and Doors Sequencer V1/V2 for ER-05/08/10/120/150/200

Description:

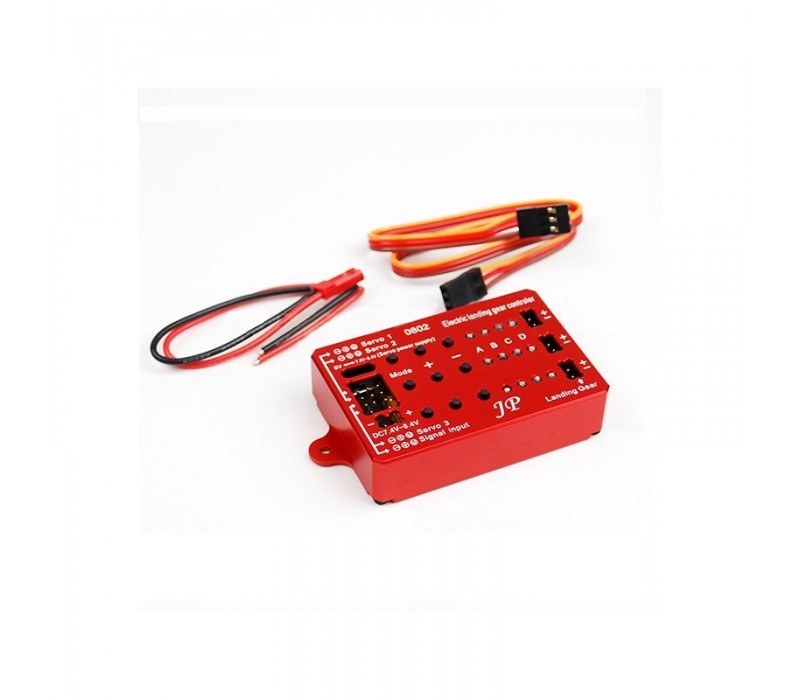

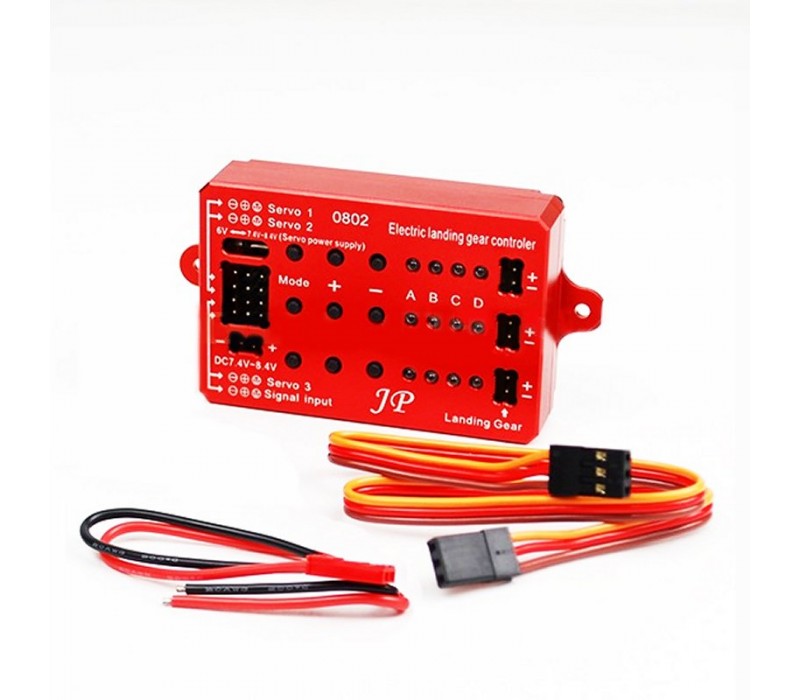

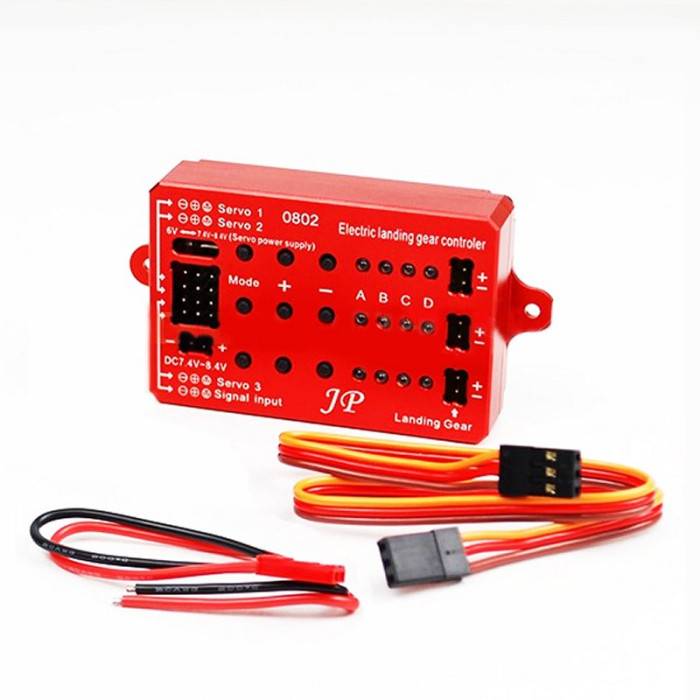

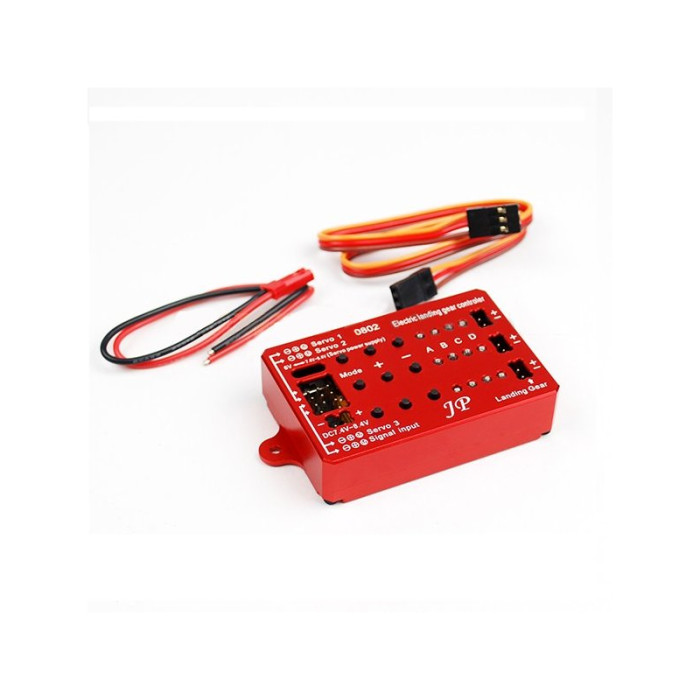

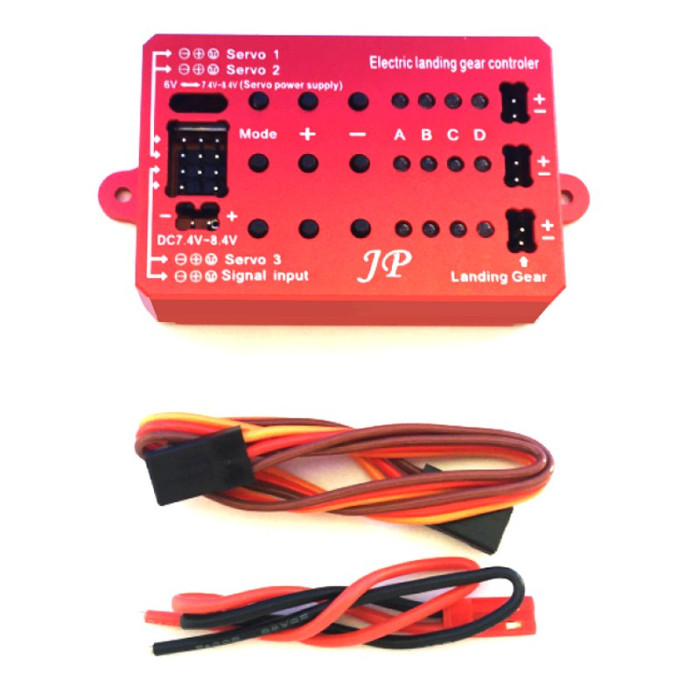

This new JP Hobby electronic module is used to control the animation sequences of retractable landing gear as well as doors. It can also be used with other enclosures equipped with integrated end of limit switches.

• The functions of the JP Hobby module are multiple:
• Automatic detection of the supply voltage
• Adjusting the supply voltage of the servos actuating the gear doors
• Adjusting the direction of rotation of the servos actuating the gear doors
•
• Mode selection:

1: Opened gear doors when the landing gear is out
 2: Closed gear doors when the landing gear is out

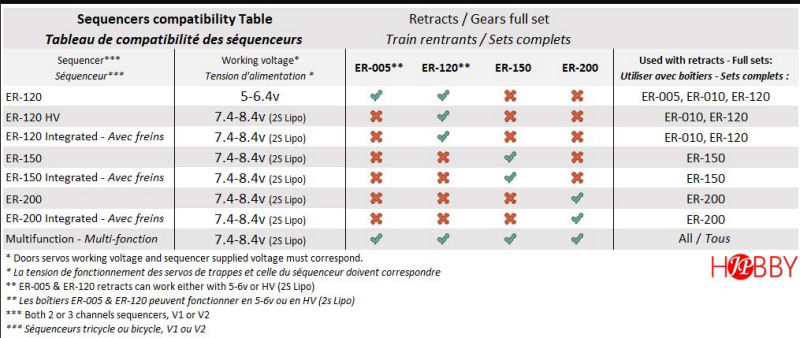

Specifications:

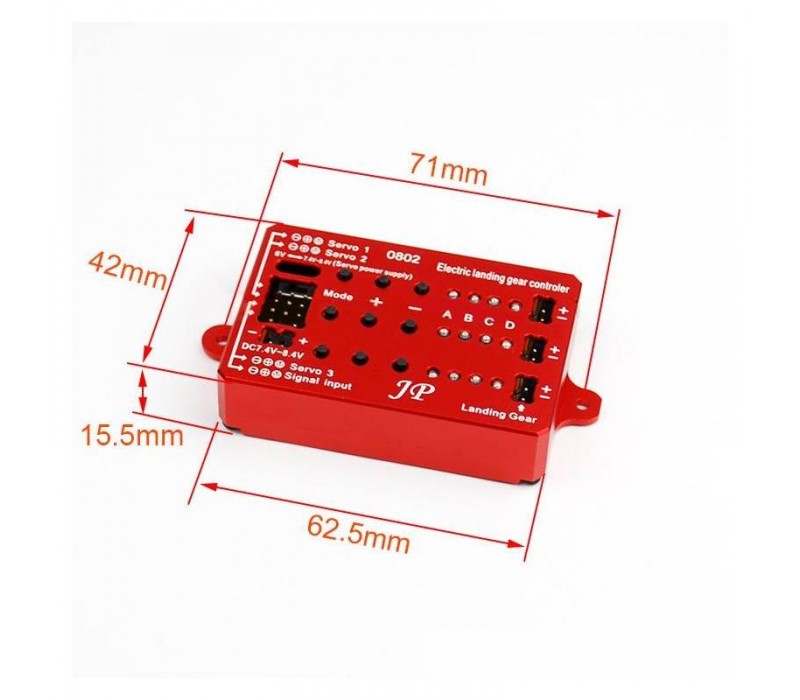

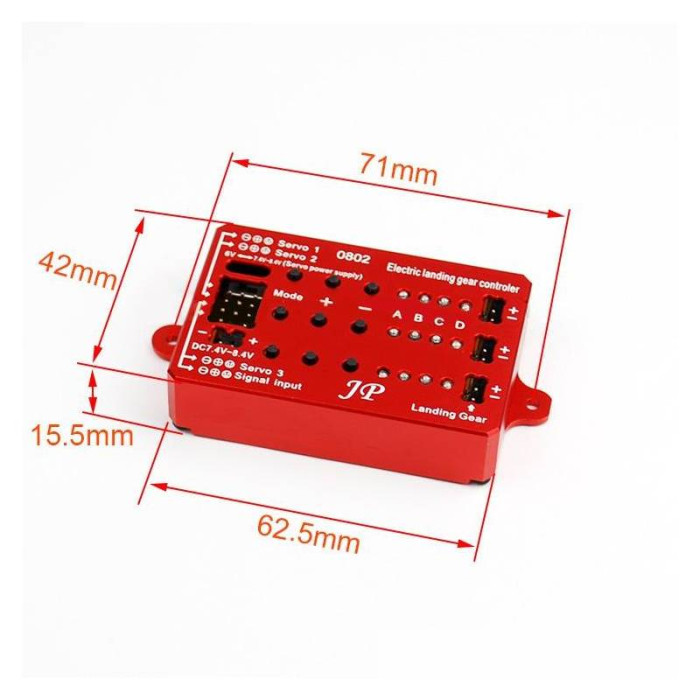

• Dimensions: 63x42x16mm
• Voltage range: 7.4-8.4V
• Weight: 34.7g

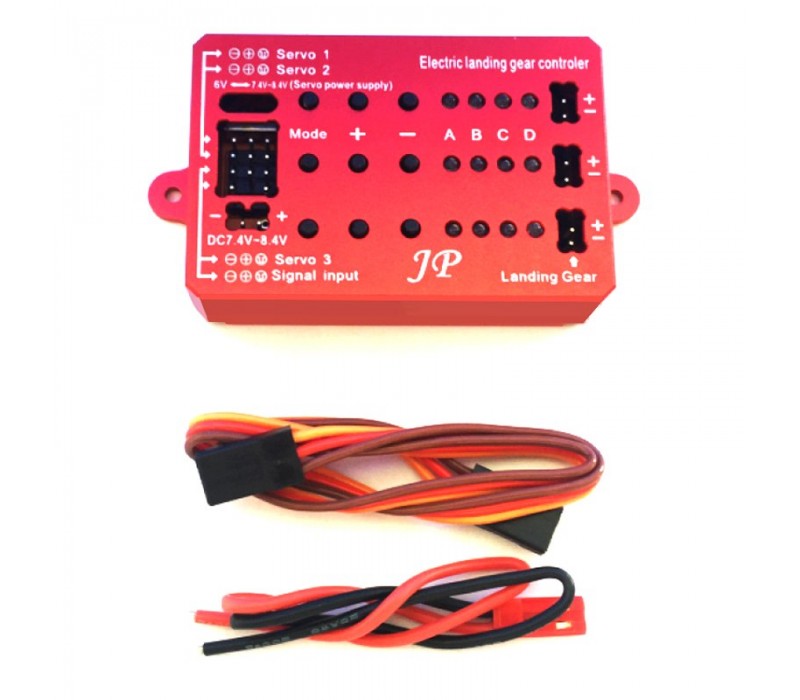

How to use it:

To change the direction of the Door Servo:

• Long press the "MODE" key
• A or B will flash.
• press + or - to change the direction.

To change the -100% Servo stroke:

• Long press the "MODE" key
• A or B will flash.
• Press "MODE" once
• A and B will flash.
• press + and - to increase or decrease stroke

To change the "MODE":

• Long press the "MODE" key
• A or B will flash.
• Press "MODE" 3 times
• C or D will flash.
• press + for "MODE 1" or - "MODE 2"
