Description:

Brand: JX

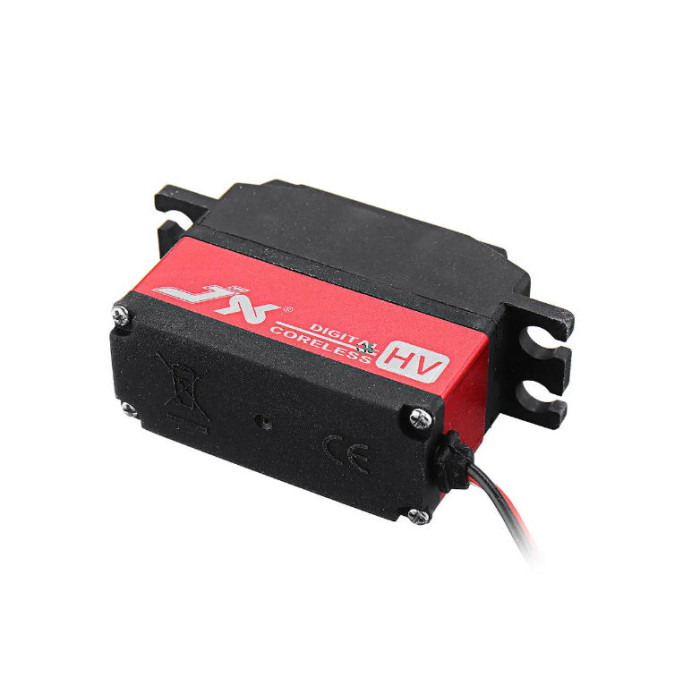

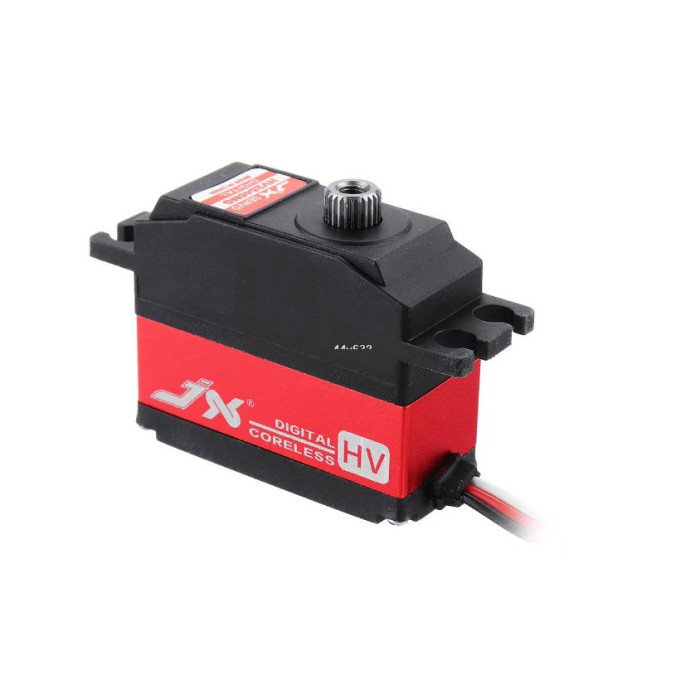

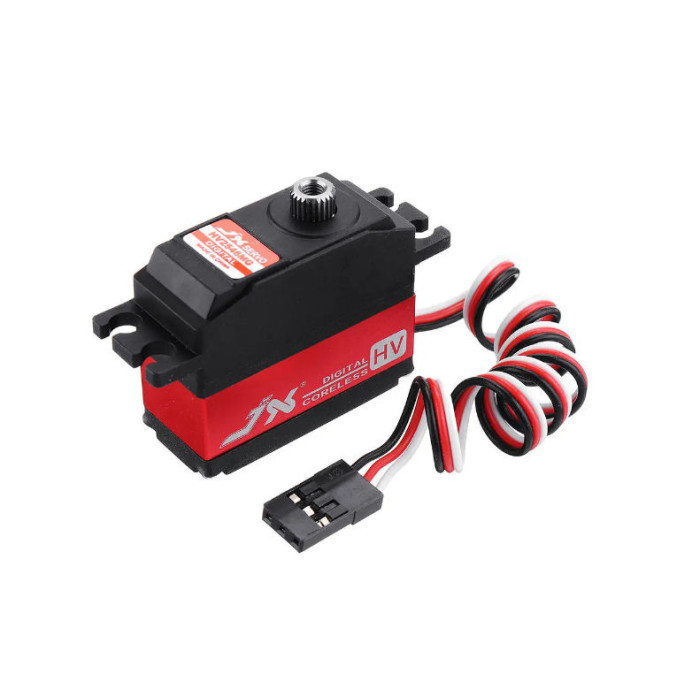

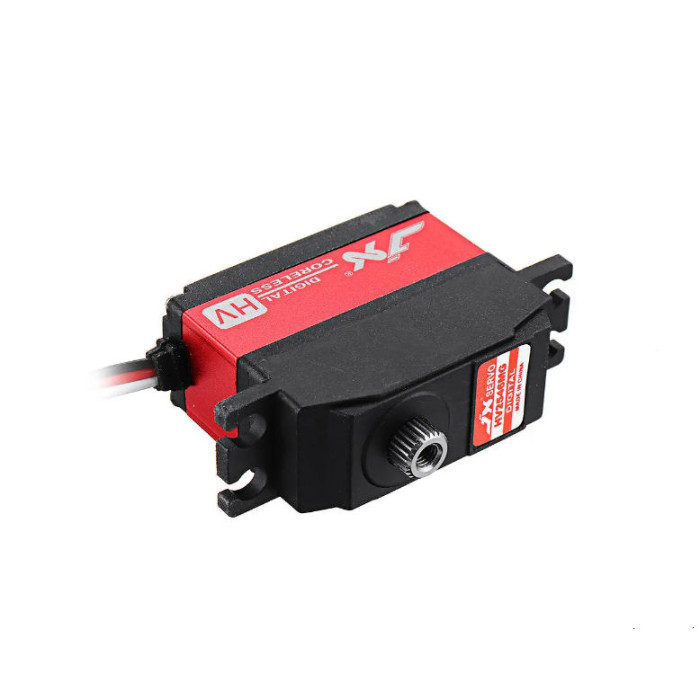

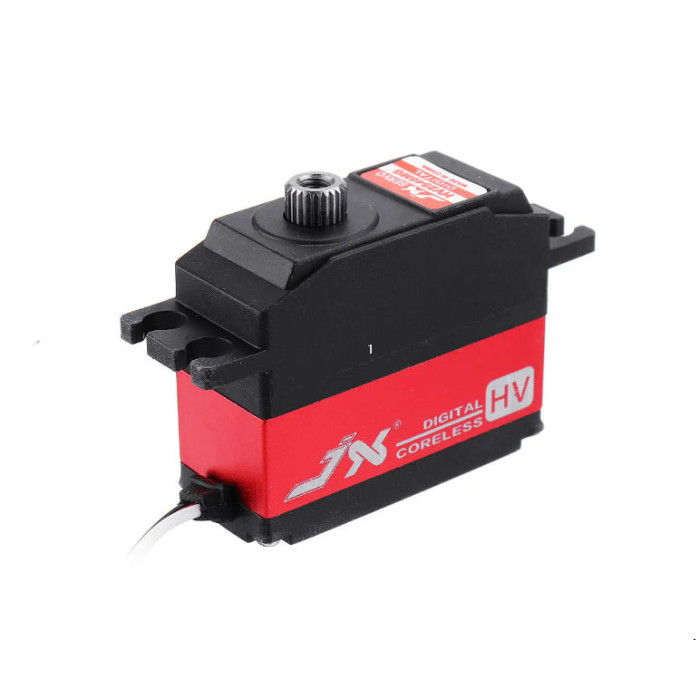

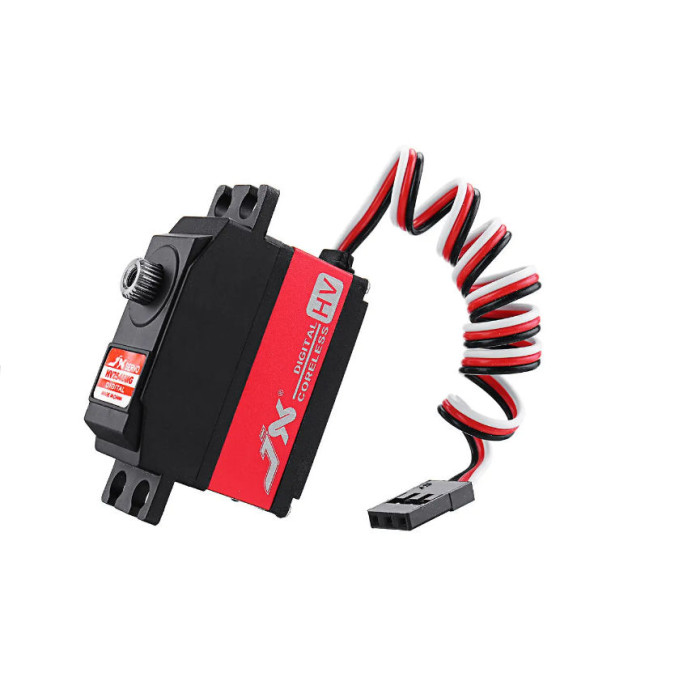

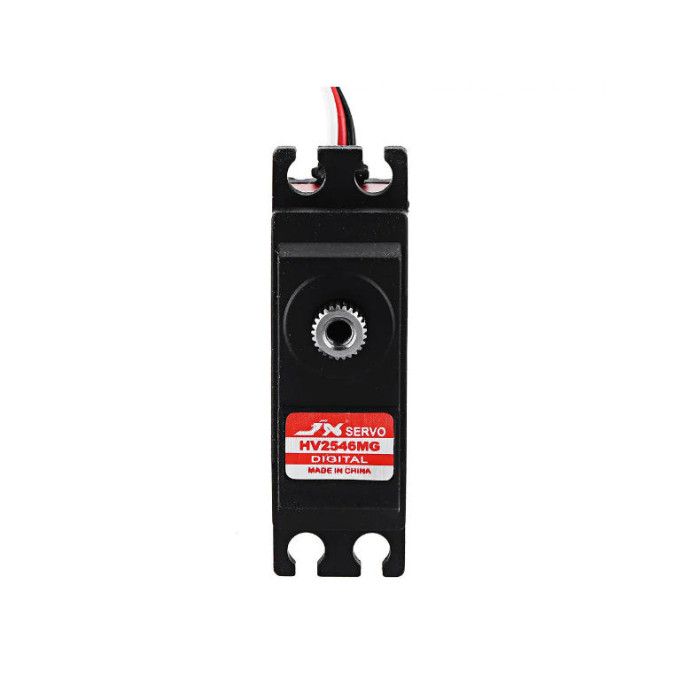

Item: PDI-HV2546MG Digital Servo

Operating Voltage: DC 4.8V-7.4V

Operating Speed (6.0V): 0.12sec/60 degrees

Operating Speed (7.4V): 0.10sec/60 degrees

Stall Torque (6.0V): 5.3kg.cm

Stall Torque (7.4V): 6.6kg.cm

Working Frequence:1500μs/330hz

Motor: Coreless motor

Bearing: 2BB

Dead Band: 1μs

Connector Wire Length: JR 180mm

Dimensions: 36*15*32.4mm /1.42*0.59*1.28in

Features:

High performance programmable digital high voltage standard servo

- High-precision Taiwan-made aluminium gears with hard anodizing

- High quality coreless motor

- Middle CNC aluminium case

- Dual ball bearings

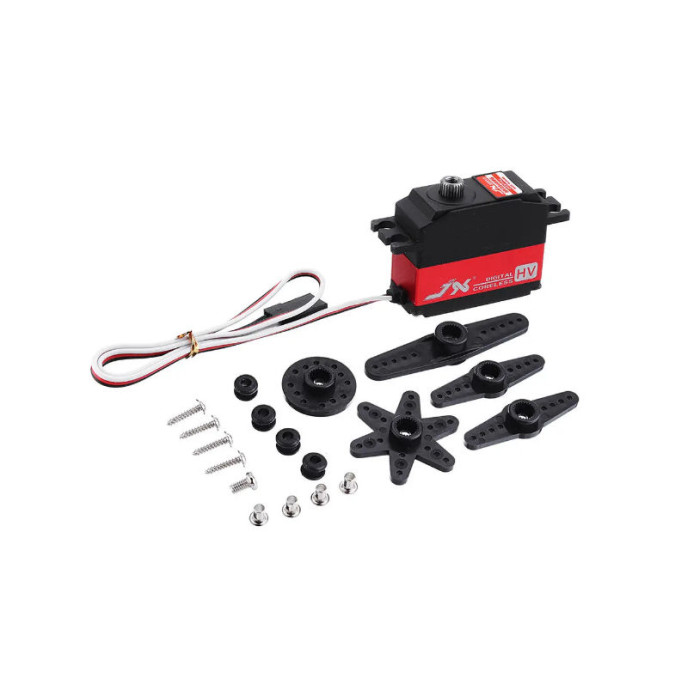

Package:

1* JX PDI-HV2546MG Digital Servo
