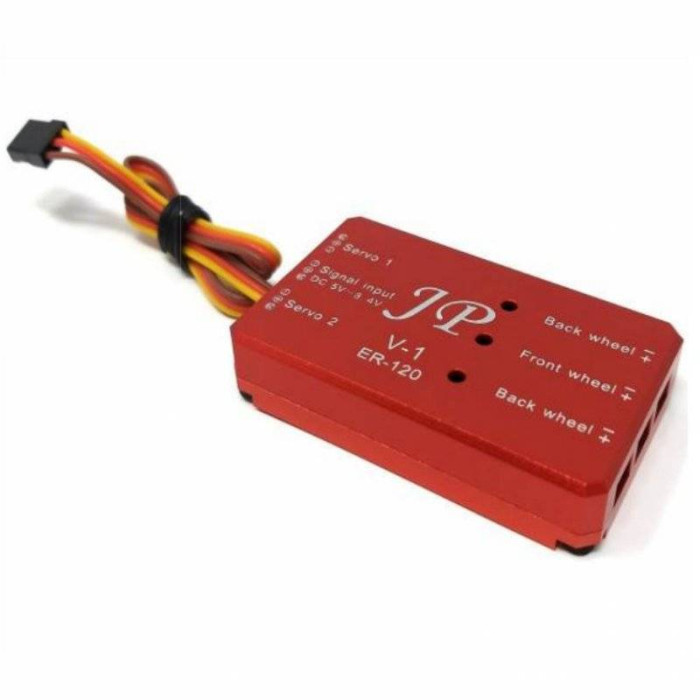

JP Hobby Tricycle Sequencer Retract Box ER-120 V1

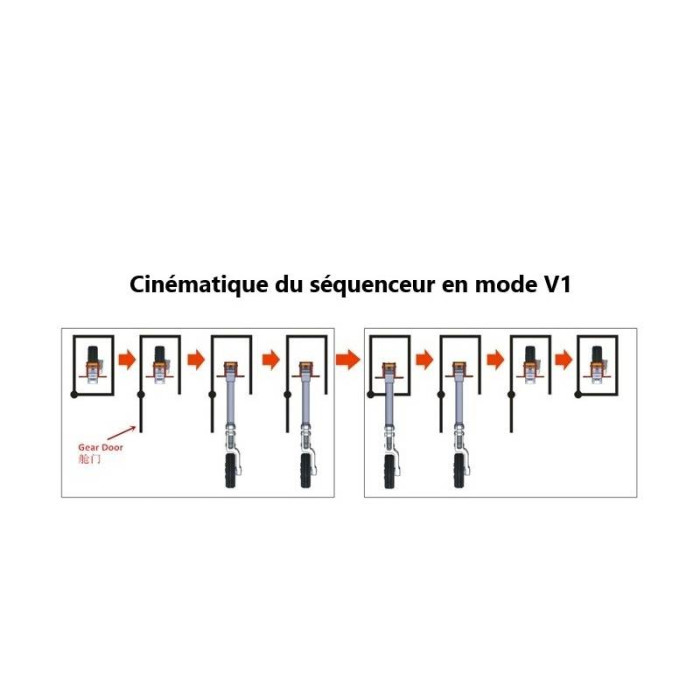

This electronic switch is used to control the sequence of electric retract from your transmitter gear channel switch. It is a replacement control box for the JP Hobby electric retracts.

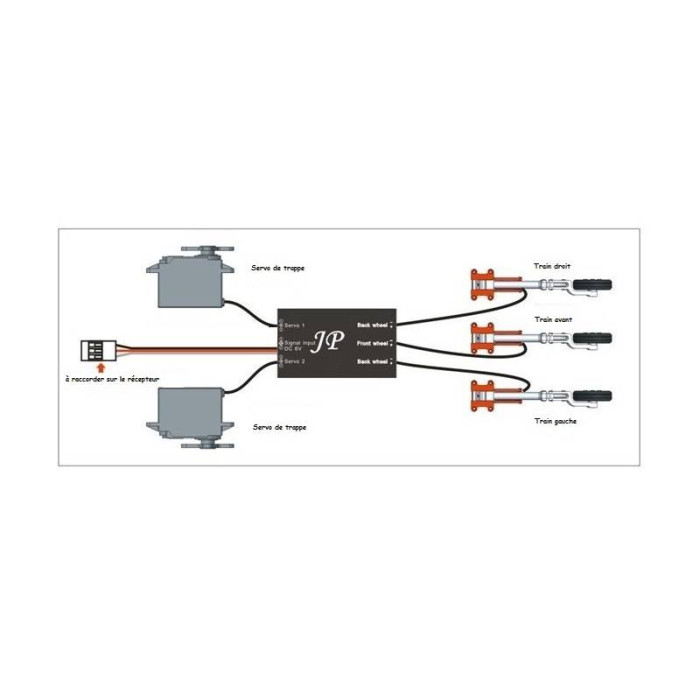

Connections:

Connect the electric retracts mechanism for the main gear to the "back wheel" plug and connect the nose wheel mechanism to the "front wheel" plug

Connect the doors servos to the "Servo 1" and "Servo 2" plugs

Connect the "signal input / DC 6V" wire and plug to your receiver "gear" channel

Specifications:

• Input voltage: 5V to 7.2V
• Size: 52 x 32 x 10 mm
• Weight: 22 gr
