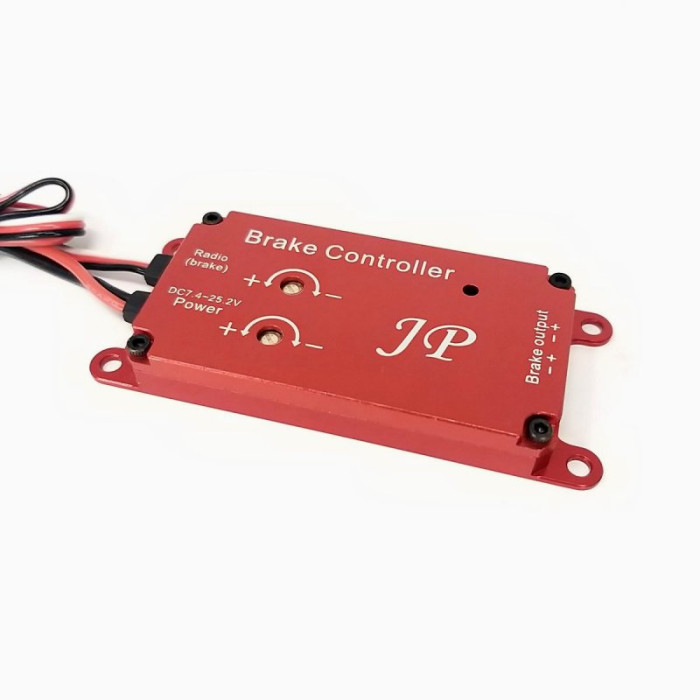

Electrical Magnetic Brake Controller for RJP Hobby magnetic brake systems with braking force controlled independantly Left / Right

Description:

Electrical Magnetic Brake Controller for RJP Hobby magnetic brake systems. This is the same controller that is included with JP Hobby Electric Wheel and Brake Sets.

JP E-Brake Using illustration

• Voltage input : 2S-6S Can tap directly on aircraft batteries Or use an external battery 2S-6S
• Voltage output: 6-10V
• Signal input : Connect the module on your receiver on a 2 or 3 position switch channel or for variable braking force, to a slider or rotary (variable) knob on your TX. Some will set up brakes as a mix, with the "down elevator" to save a channel.
• The braking force is controlled independantly Left / Right by the servo travel/endpoints you set in your TX.

Specifications:

• Input：7.4v~25.2v (2~6S lipo)
•  Output Voltage: 6~10V
•  Size: 70 x 34 x 17mm
• Weight: 61.2g
