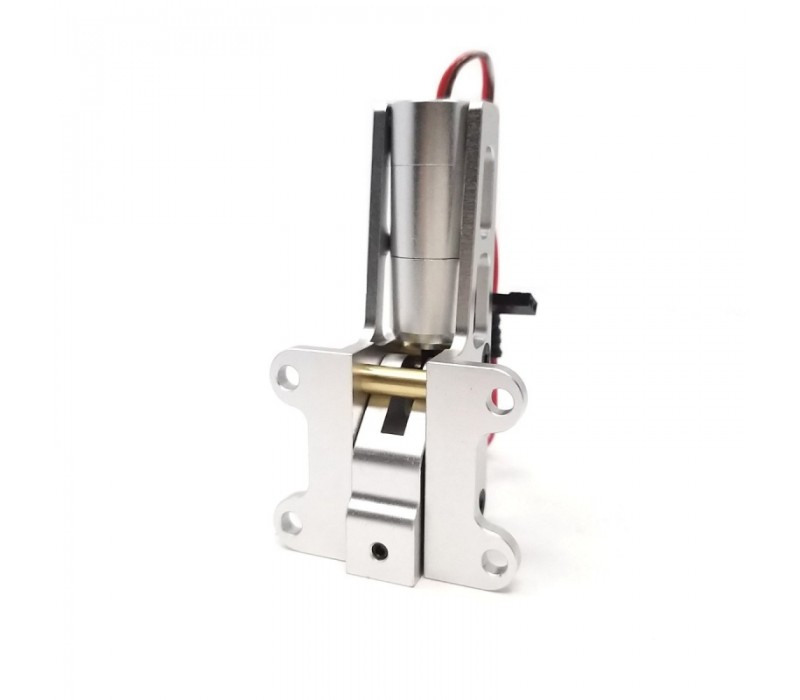

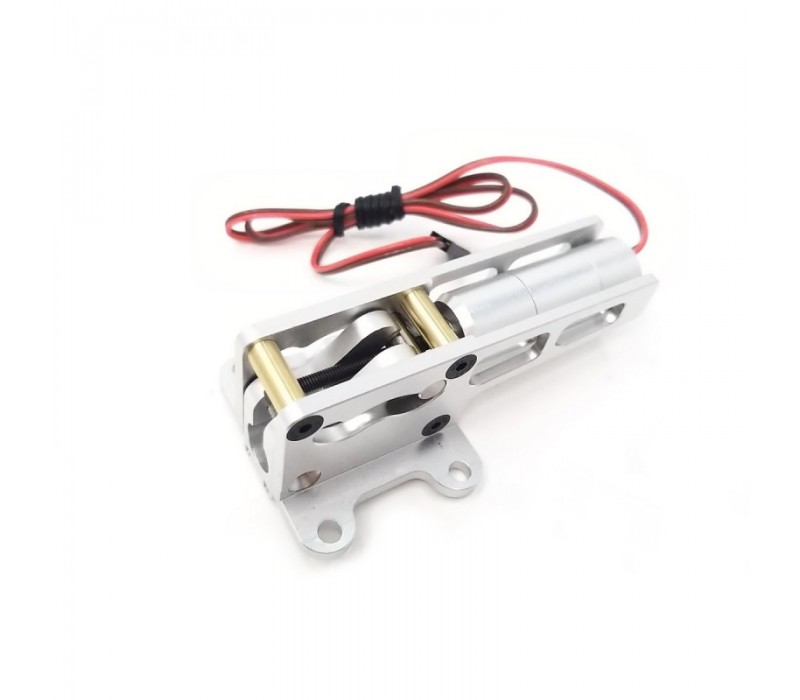

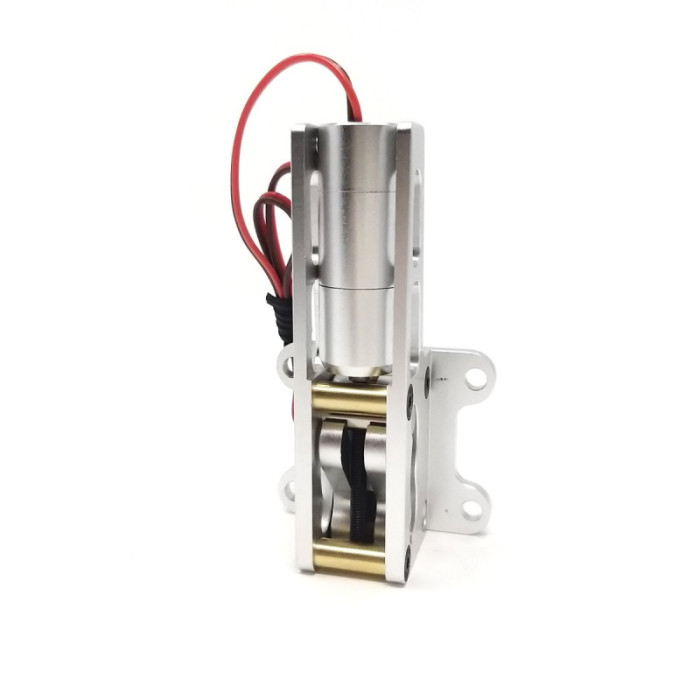

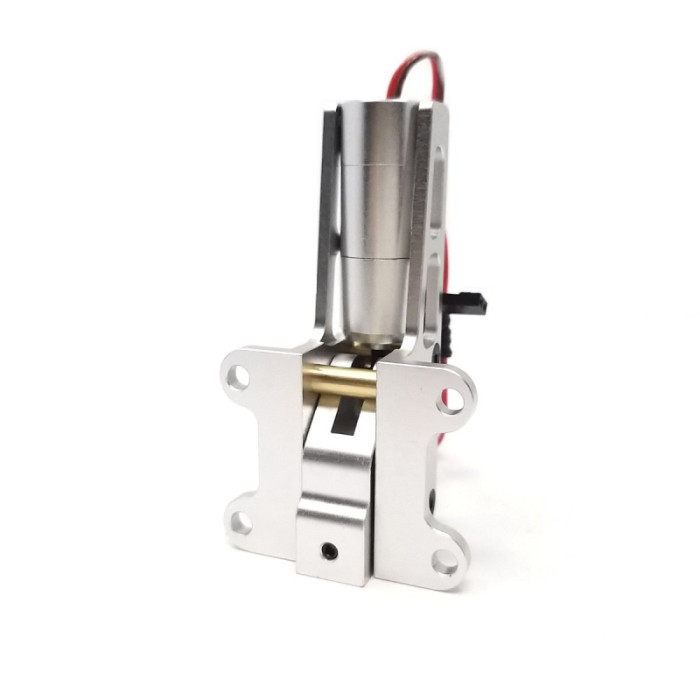

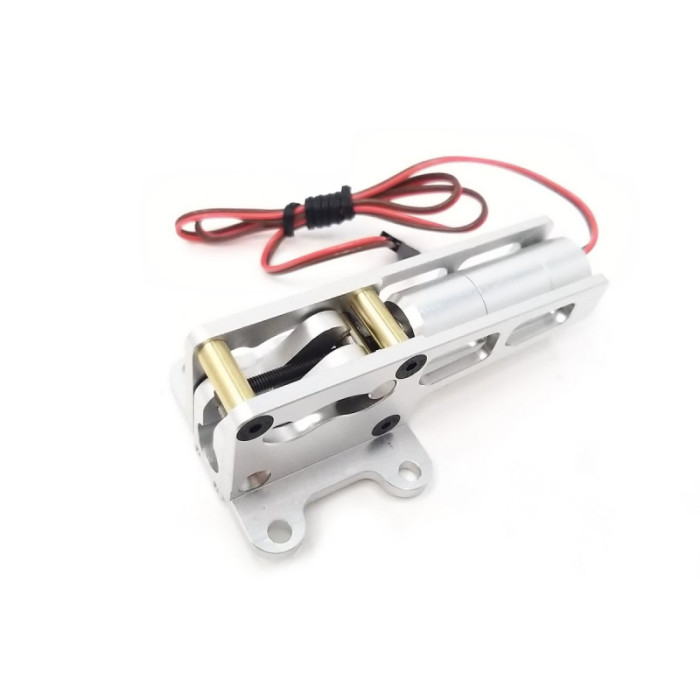

JP Hobby ER-008 electric main retract for oleo struts for planes up to 8kg (Mounting position low and jack side rotation)
Electric Main Retract ER-008
> Model Weight: until 8kg
> Struts diameter: 9mm (6mm adapter in option)
> Angle: 90 degrees
> Rotation direction: Outside (Opposite jack side)
> Mounting: Low
Specifications:
- Material: Aluminium
- Struts diameter for mouting on retract : 9mm (or strut drilled with a 6mm with adapter in option)
- For plane: up to 8kg
Technical Specifications:
- Retract weight: 68.5g

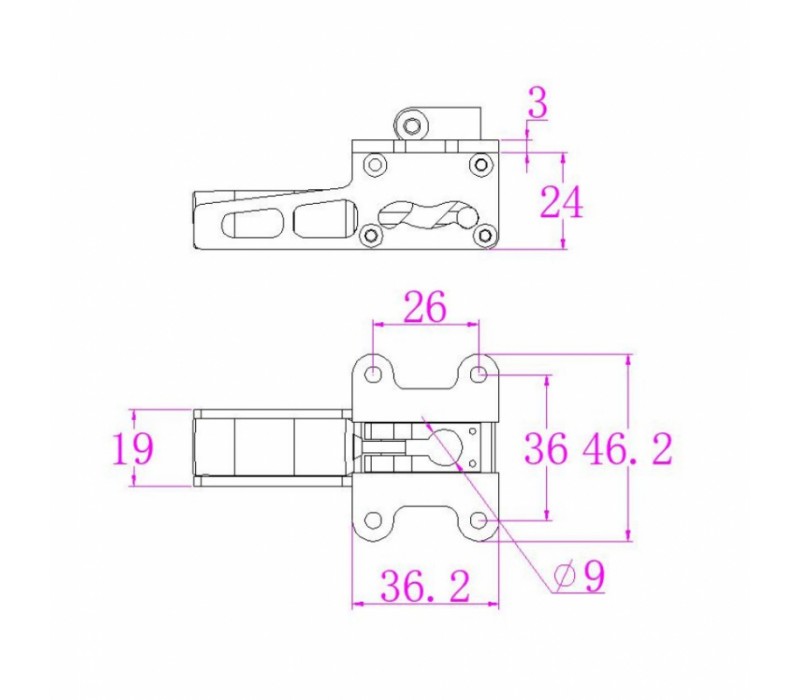

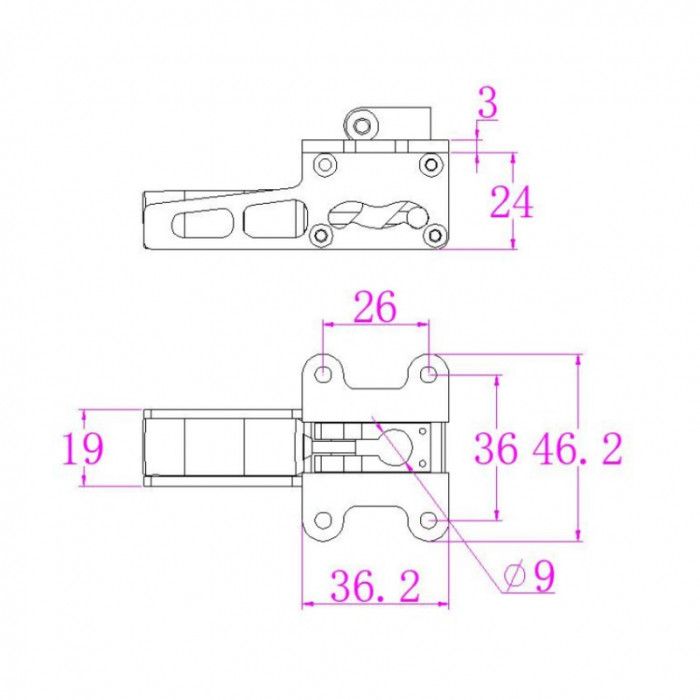

- Retract sizes: 24mm x 36.2mm x 19mm
- Retract mounting plate sizes: 36.2mm x 46.2mm
- Length with motor: 75.4mm
- Working Voltage: 5-6V
- Speed: 5.2 sec (5v) - 4.3 sec (6v)
Package Contents:
- 1x Main Retract JP Hobby ER-008 9mm unit (8kg/Low/Outside)
