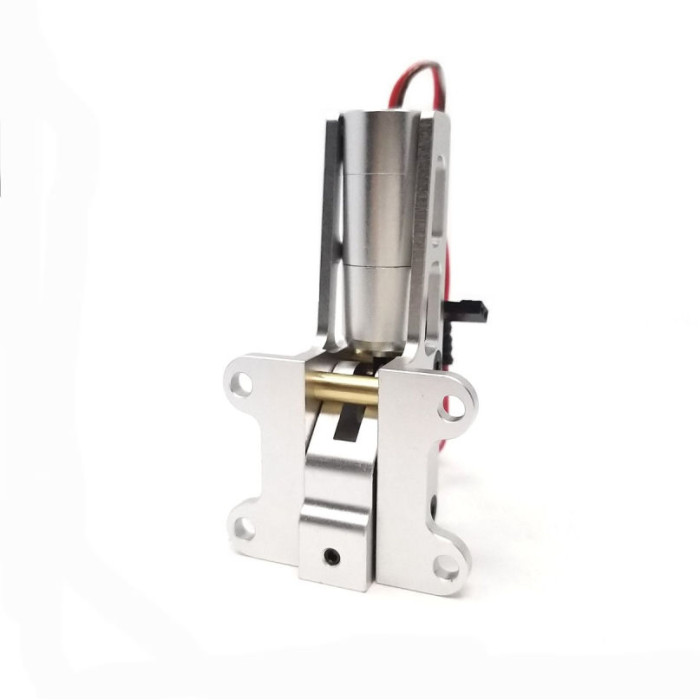

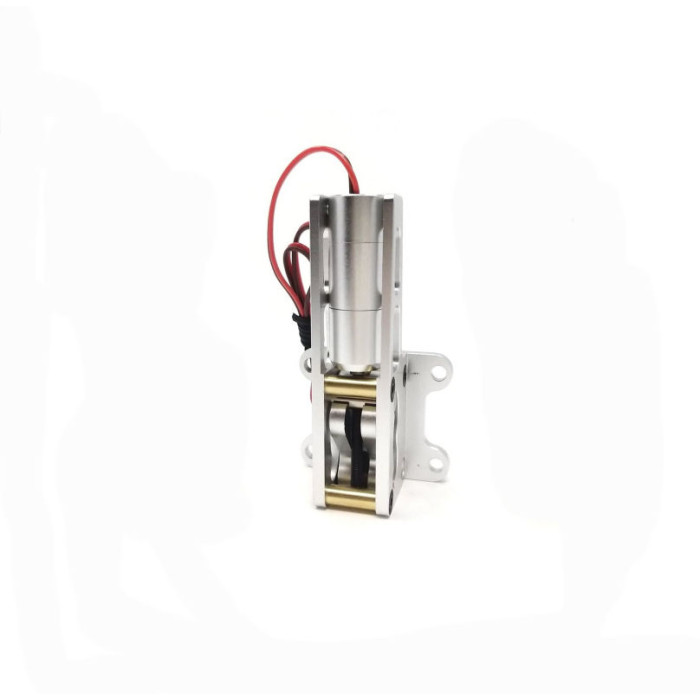

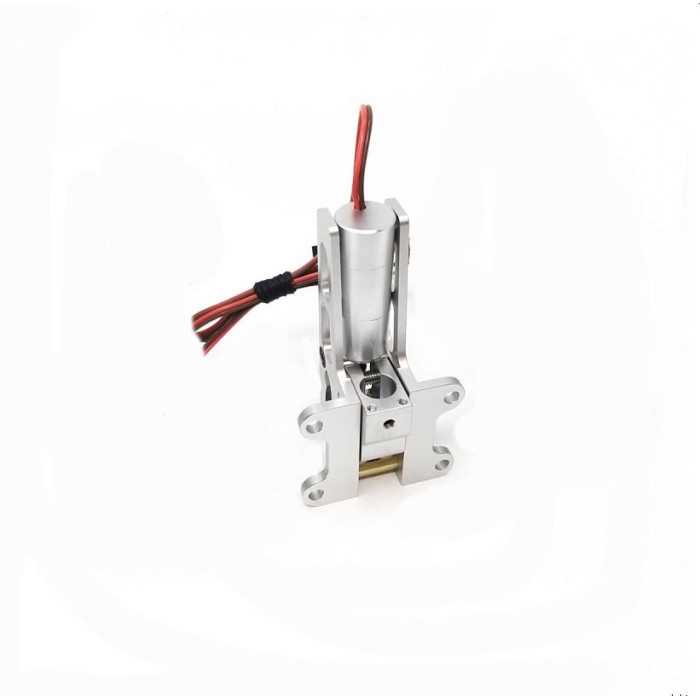

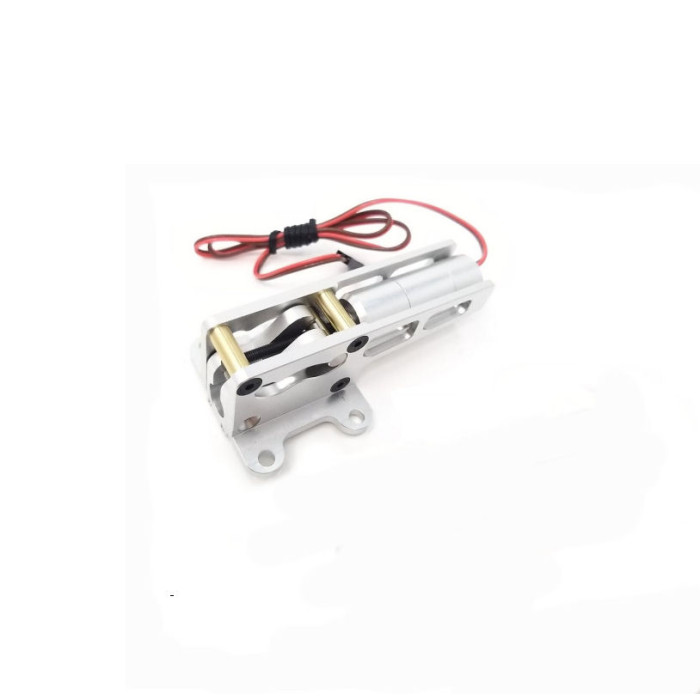

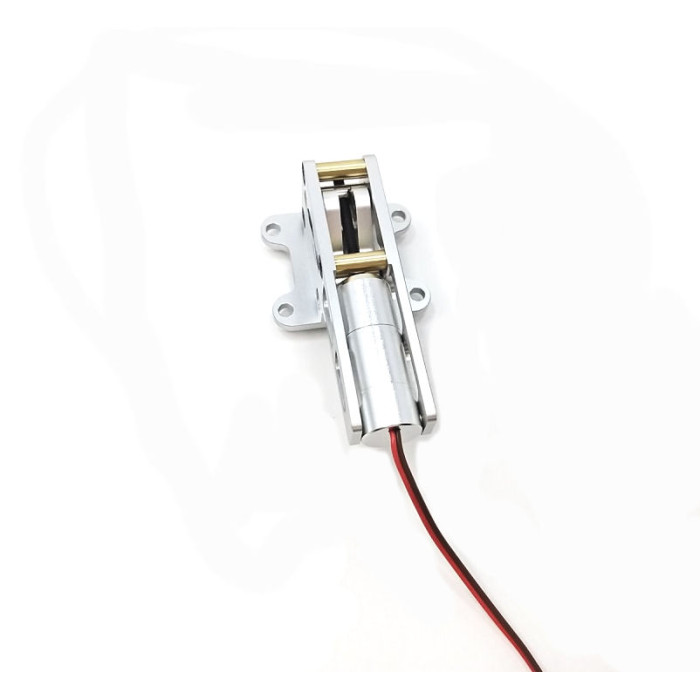

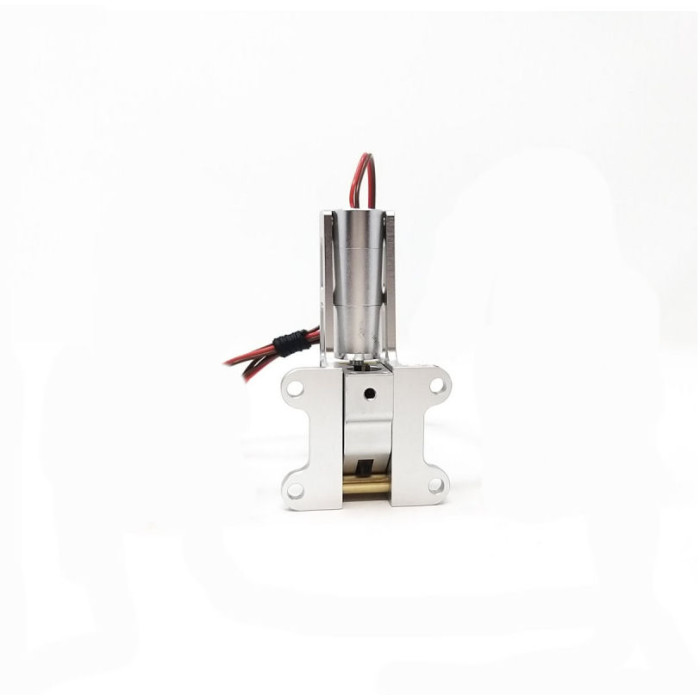

JP Hobby Electric Retract ER-008 9mm (9kg/Low/Inside) main retract for oleo struts for planes up to 8kg (Mounting position low and jack side rotation)

Electric Main Retract ER-008

> Model Weight: until 8kg
> Struts diameter: 9mm (6mm adapter in option)
> Angle: 90 degrees
> Rotation direction: Inside (jack side)
> Mounting: Low

Specifications:

• Material: Aluminium
• Struts diameter for mouting on retract : 9mm (or strut drilled with a 6mm with adapter in option)
• For plane: up to 8kg

Technical Specifications:

• Retract weight: 68.5g

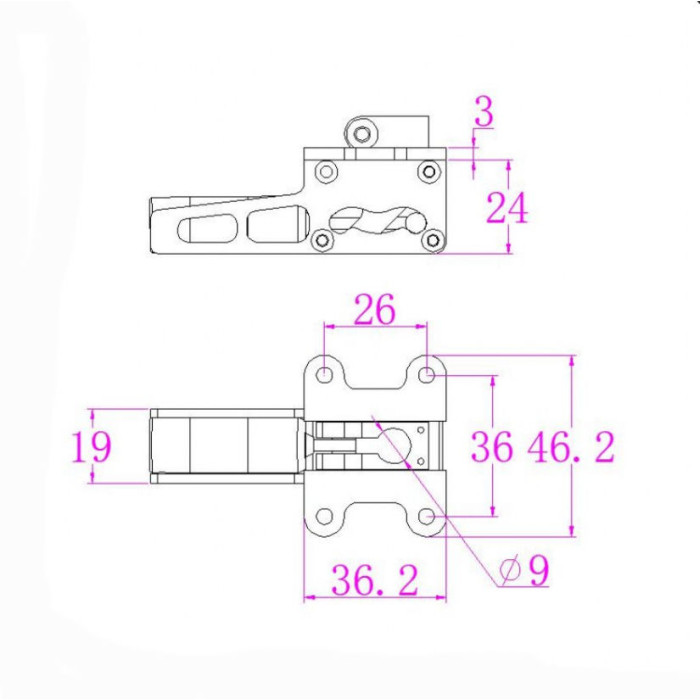

• Retract sizes: 24mm x 36.2mm x 19mm
• Retract mounting plate sizes: 36.2mm x 46.2mm
• Length with motor: 75.4mm
• Working Voltage:  5-6V
• Speed: 5.2 sec (5v) - 4.3 sec (6v)

Package Contents:

• 1x Main Retract JP Hobby ER-008 9mm unit (8kg/Low/Inside)
