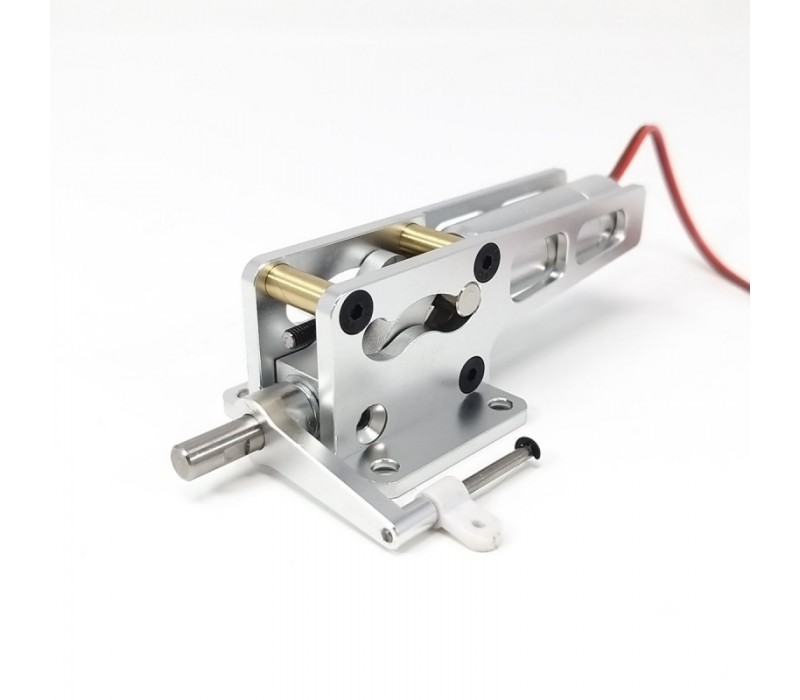

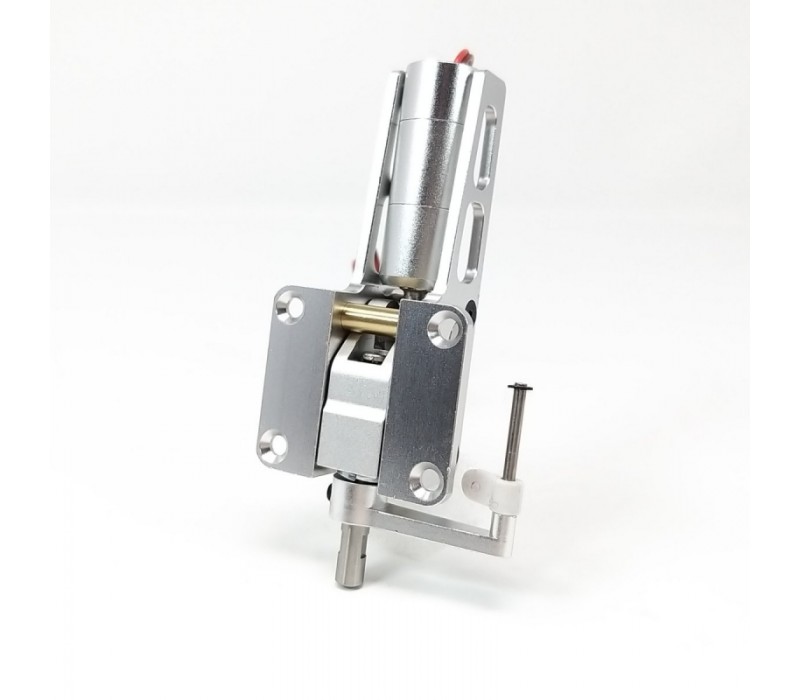

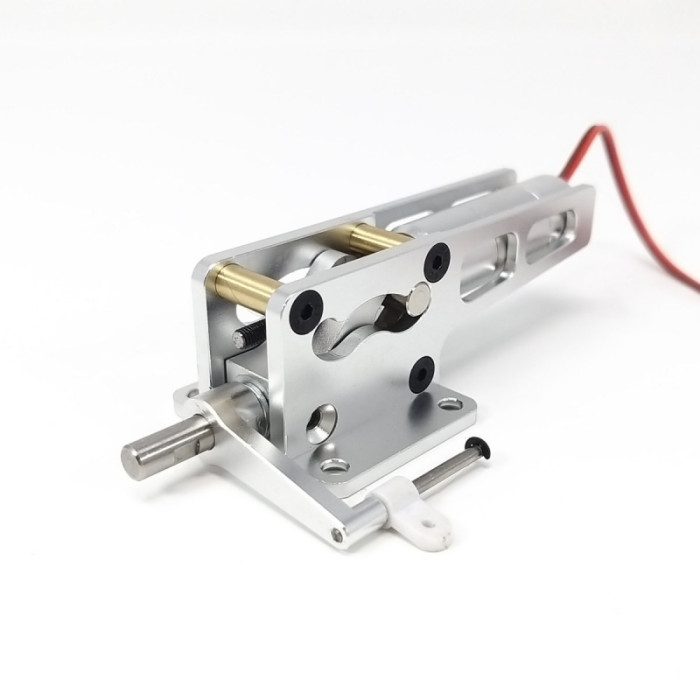

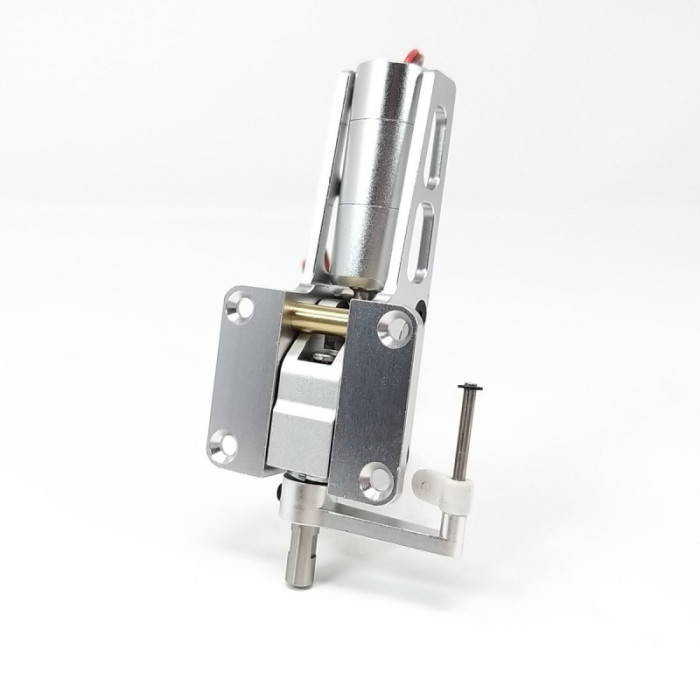

JP Hobby ER-005 5mm electric nose retract for 10mm oleo struts for models up to 6kg (Mounting position low and opposite jack side rotation)

Electric 100% CNC aluminium nose retract for planes up to 6kg for JP Hobby oleo struts ER-005 or equivalent with a 5mm diameter in the upper part. 90% outside rotation angle (opposite jack side) and mounting position low.

Specifications:

• Material: Aluminium
• Struts diameter: 10mm
• Pin Diameter Size: 5mm
• Equipped with a trunion block ref. JPH-TRU ER-005-5mm(I)
• For plane: up to 6 kg (possible 7-8kg)

Technical Specifications:

• Retract weight: 63g
• Retract sizes: 26mm x 73mm x 18mm
• Retract mounting plate sizes: 33mm x 37mm
• Length with motor: 74mm
• Working Voltage:  5-6.4V
• Speed: 5.2 sec (5v) - 4.3 sec (6v)

Package Contents:

• 1x Nose Gear Retract JP Hobby ER-005 5mm unit (6kg/Low/Outside)
